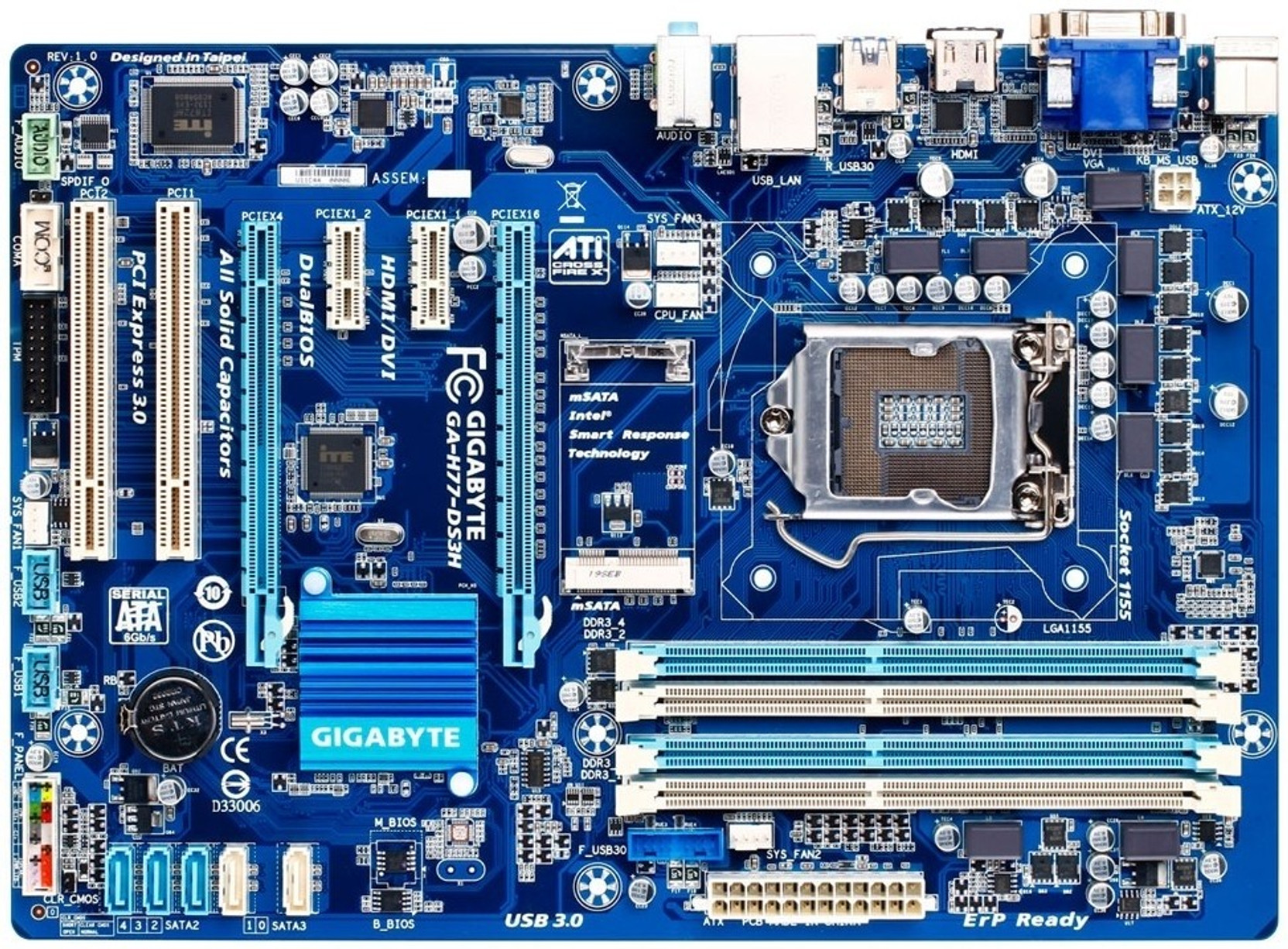

Name: Gigabyte GA-H77-DS3H (rev. 1.0) @BIOS Utility
Version: B12.0406.1
Size: 5.38 MB
Category:Miscellaneous
License: Free
Released: 2013-12-11
Developer: Gigabyte Technology, Inc.
Downloads: 707

CPU
- Support for Intel Core i7processors/Intel Core i5 processors/ Intel Core i3 processors/IntelPentium processors/Intel Celeron processors in the LGA1155 package
- L3 cache varies with CPU
Chipset
- Intel H77 Express Chipset
Memory
- 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GBof physical memory is installed, the actual memory size displayed willbe less than 4 GB.
- Dual channel memory architecture
- Support for DDR3 1600/1333/1066 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel 22nm CPU.
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel 22nm CPU.
Onboard Graphics
Integrated Graphics Processor:
- 1 x D-Sub port
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 1920x1200
Audio
- Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
*To configure 7.1-channel audio, you have to use an HD front panel audiomodule and enable the multi-channel audio feature through the audiodriver.
- Support for S/PDIF Out
LAN
- Atheros GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
- 2 x PCI slots
Multi-Graphics Technology
- Support for AMD CrossFireX technology
* The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX is enabled.
Storage Interface Chipset:
- 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
- 3 x SATA 3Gb/s connectors (SATA2 2/3/4) supporting up to 3 SATA 3Gb/s devices
- 1 x mSATA connector
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
*When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels,the system performance of the RAID set may vary depending on thedevices being connected.
USB Chipset:
- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATA 6Gb/s connectors
- 3 x SATA 3Gb/s connectors
- 1 x mSATA connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 headers
- 1 x USB 3.0/2.0 header
- 1 x Clear CMOS jumper
- 1 x serial port header
- 1 x Trusted Platform Module (TPM) header
Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 2.0/1.1 ports
- 2 x USB 3.0/2.0 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
- iTE I/O Controller Chip
H/W Monitoring
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
- 2 x 64 Mbit flash
- Use of licensed AMI EFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for eXtreme Hard Drive (X.H.D)
- Support for Auto Green
- Support for ON/OFF Charge
- Support for Q-Share
- Support for LAN Optimizer (Intelligent optimization network management tool)
Bundle Software
- Norton Internet Security (OEM version)
- Intel Smart Response Technology
- Intel Rapid Start Technology
- Intel Smart Connect Technology
Form Factor
- ATX Form Factor; 30.5cm x 21.5cm
